[딥러닝] Pytorch 과적합방지를 위한 Train / Valid / Test set 분리(+ 회귀모델 템플릿)

98% ,100%정확도를 가지고 있는 모델은 정말 좋은 모델일까?

이 모델만 있으면 세상의 진리를 깨우친거라고 말할 수 있을까?



아쉽게도 모델의 정확도가 이렇게 높다면 train_set data에 대해서 충분히 학습이 되어 과적합일 확률이 높다.

과적합 = 초록색

즉, 우물안 개구리인 모델이라는 뜻이다.



정말 좋은 모델은 우리가 아직 알지 못하는 미래 즉, Unseen data에 대한 정확도가 높은 것을 의미한다.



그렇다면 아래의 과정으로 모델의 Unseen Data에 대한 정확도를 확인하고, 과적합을 줄이는 방법에 대해서 이야기해보자.

import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

from sklearn.preprocessing import StandardScaler



from sklearn.datasets import fetch_california_housing
california = fetch_california_housing()
df = pd.DataFrame(california.data, columns=california.feature_names)
df["Target"] = california.target

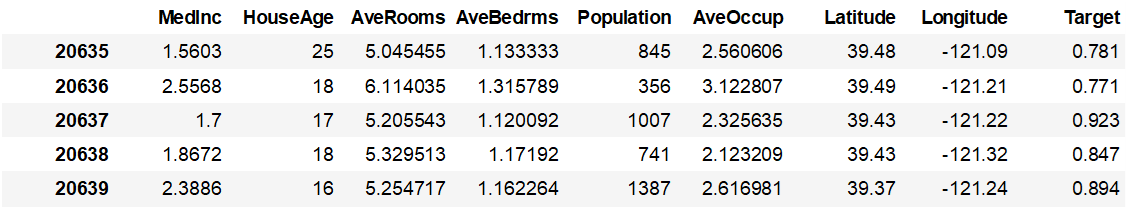

df.tail()



import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim

data = torch.from_numpy(df.values).float()

x = data[:, :-1]
y = data[:, -1:]

print(x.size(), y.size())

torch.Size([20640, 8]) torch.Size([20640, 1])



분리 비율 결정

# Train / Valid / Test ratio
ratios = [.6, .2, .2]

train_cnt = int(data.size(0) * ratios[0])
valid_cnt = int(data.size(0) * ratios[1])
test_cnt = data.size(0) - train_cnt - valid_cnt
cnts = [train_cnt, valid_cnt, test_cnt]

print("Train %d / Valid %d / Test %d samples." % (train_cnt, valid_cnt, test_cnt))

Train 12384 / Valid 4128 / Test 4128 samples.

데이터를 나누기 전에 데이터를 Shuffle 해주어야한다.

# Shuffle before split.
indices = torch.randperm(data.size(0))
x = torch.index_select(x, dim=0, index=indices)
y = torch.index_select(y, dim=0, index=indices)

# Split train, valid and test set with each count.
x = list(x.split(cnts, dim=0))
y = y.split(cnts, dim=0)

for x_i, y_i in zip(x, y):
    print(x_i.size(), y_i.size())

torch.Size([12384, 8]) torch.Size([12384, 1])
torch.Size([4128, 8]) torch.Size([4128, 1])
torch.Size([4128, 8]) torch.Size([4128, 1])



전처리

train_set에 대해서만 Scaling을 진행해야합니다.

valid, test에 대해서 같이 Scaling을 진행하면, Data Leakage가 발생하여 정확한 분석이 어렵습니다.

scaler = StandardScaler()
scaler.fit(x[0].numpy()) # You must fit with train data only.

x[0] = torch.from_numpy(scaler.transform(x[0].numpy())).float()
x[1] = torch.from_numpy(scaler.transform(x[1].numpy())).float()
x[2] = torch.from_numpy(scaler.transform(x[2].numpy())).float()

df = pd.DataFrame(x[0].numpy(), columns=california.feature_names)
df.tail()



모델 생성

model = nn.Sequential(
    nn.Linear(x[0].size(-1), 6),
    nn.LeakyReLU(),
    nn.Linear(6, 5),
    nn.LeakyReLU(),
    nn.Linear(5, 4),
    nn.LeakyReLU(),
    nn.Linear(4, 3),
    nn.LeakyReLU(),
    nn.Linear(3, y[0].size(-1)),
)

model

Sequential(
  (0): Linear(in_features=8, out_features=6, bias=True)
  (1): LeakyReLU(negative_slope=0.01)
  (2): Linear(in_features=6, out_features=5, bias=True)
  (3): LeakyReLU(negative_slope=0.01)
  (4): Linear(in_features=5, out_features=4, bias=True)
  (5): LeakyReLU(negative_slope=0.01)
  (6): Linear(in_features=4, out_features=3, bias=True)
  (7): LeakyReLU(negative_slope=0.01)
  (8): Linear(in_features=3, out_features=1, bias=True)
)





optimizer = optim.Adam(model.parameters())



n_epochs = 4000
batch_size = 256
print_interval = 100

from copy import deepcopy

lowest_loss = np.inf
best_model = None

early_stop = 100
lowest_epoch = np.inf

아래 코드에서 가장 중요한 점은  vaild_set에 대해서는 파라미터를 수정하지 않는다는 점입니다.

train_history, valid_history = [], []

for i in range(n_epochs):
    # Shuffle before mini-batch split.
    indices = torch.randperm(x[0].size(0))
    x_ = torch.index_select(x[0], dim=0, index=indices)
    y_ = torch.index_select(y[0], dim=0, index=indices)
    # |x_| = (total_size, input_dim)
    # |y_| = (total_size, output_dim)

    x_ = x_.split(batch_size, dim=0)
    y_ = y_.split(batch_size, dim=0)
    # |x_[i]| = (batch_size, input_dim)
    # |y_[i]| = (batch_size, output_dim)

    train_loss, valid_loss = 0, 0
    y_hat = []

    for x_i, y_i in zip(x_, y_):
        # |x_i| = |x_[i]|
        # |y_i| = |y_[i]|
        y_hat_i = model(x_i)
        loss = F.mse_loss(y_hat_i, y_i)

        optimizer.zero_grad()
        loss.backward()

        optimizer.step()
        train_loss += float(loss)

    train_loss = train_loss / len(x_)

    # You need to declare to PYTORCH to stop build the computation graph.
    with torch.no_grad():
        # You don't need to shuffle the validation set.
        # Only split is needed.
        x_ = x[1].split(batch_size, dim=0)
        y_ = y[1].split(batch_size, dim=0)

        valid_loss = 0

        for x_i, y_i in zip(x_, y_):
            y_hat_i = model(x_i)
            loss = F.mse_loss(y_hat_i, y_i)

            valid_loss += loss

            y_hat += [y_hat_i]

    valid_loss = valid_loss / len(x_)

    # Log each loss to plot after training is done.
    train_history += [train_loss]
    valid_history += [valid_loss]

    if (i + 1) % print_interval == 0:
        print('Epoch %d: train loss=%.4e  valid_loss=%.4e  lowest_loss=%.4e' % (
            i + 1,
            train_loss,
            valid_loss,
            lowest_loss,
        ))

    if valid_loss <= lowest_loss:
        lowest_loss = valid_loss
        lowest_epoch = i

        # 'state_dict()' returns model weights as key-value.
        # Take a deep copy, if the valid loss is lowest ever.
        best_model = deepcopy(model.state_dict())
    else:
        if early_stop > 0 and lowest_epoch + early_stop < i + 1:
            print("There is no improvement during last %d epochs." % early_stop)
            break

print("The best validation loss from epoch %d: %.4e" % (lowest_epoch + 1, lowest_loss))

# Load best epoch's model.
model.load_state_dict(best_model)

Epoch 100: train loss=3.4720e-01  valid_loss=3.3938e-01  lowest_loss=3.4056e-01
Epoch 200: train loss=3.0026e-01  valid_loss=2.9215e-01  lowest_loss=2.9067e-01
Epoch 300: train loss=2.9045e-01  valid_loss=2.8444e-01  lowest_loss=2.8279e-01
Epoch 400: train loss=2.8746e-01  valid_loss=2.8237e-01  lowest_loss=2.8207e-01
Epoch 500: train loss=2.8728e-01  valid_loss=2.8370e-01  lowest_loss=2.8160e-01
Epoch 600: train loss=2.8657e-01  valid_loss=2.8159e-01  lowest_loss=2.8090e-01
There is no improvement during last 100 epochs.
The best validation loss from epoch 539: 2.8090e-01



Loss_시각화

plot_from = 10

plt.figure(figsize=(20, 10))
plt.grid(True)
plt.title("Train / Valid Loss History")
plt.plot(
    range(plot_from, len(train_history)), train_history[plot_from:],
    range(plot_from, len(valid_history)), valid_history[plot_from:],
)
plt.yscale('log')
plt.show()



test_loss = 0
y_hat = []

with torch.no_grad():
    x_ = x[2].split(batch_size, dim=0)
    y_ = y[2].split(batch_size, dim=0)

    for x_i, y_i in zip(x_, y_):
        y_hat_i = model(x_i)
        loss = F.mse_loss(y_hat_i, y_i)

        test_loss += loss # Gradient is already detached.

        y_hat += [y_hat_i]

test_loss = test_loss / len(x_)
y_hat = torch.cat(y_hat, dim=0)

sorted_history = sorted(zip(train_history, valid_history),
                        key=lambda x: x[1])

print("Train loss: %.4e" % sorted_history[0][0])
print("Valid loss: %.4e" % sorted_history[0][1])
print("Test loss: %.4e" % test_loss)

Train loss: 2.8728e-01
Valid loss: 2.8090e-01
Test loss: 2.9679e-01



결과확인

df = pd.DataFrame(torch.cat([y[2], y_hat], dim=1).detach().numpy(),
                  columns=["y", "y_hat"])

sns.pairplot(df, height=5)
plt.show()







템플릿

import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

from sklearn.preprocessing import StandardScaler

DataFrame 설정

df = "  "
df["Target"] = "  "

data 범위 설정

import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim

data = torch.from_numpy(df.values).float()

x = data[:, :-1]
y = data[:, -1:]

print(x.size(), y.size())

Train/ Valid/ Test 비율 지정

# Train / Valid / Test ratio
ratios = [.6, .2, .2]

train_cnt = int(data.size(0) * ratios[0])
valid_cnt = int(data.size(0) * ratios[1])
test_cnt = data.size(0) - train_cnt - valid_cnt
cnts = [train_cnt, valid_cnt, test_cnt]

print("Train %d / Valid %d / Test %d samples." % (train_cnt, valid_cnt, test_cnt))

# Shuffle before split.
indices = torch.randperm(data.size(0))
x = torch.index_select(x, dim=0, index=indices)
y = torch.index_select(y, dim=0, index=indices)

# Split train, valid and test set with each count.
x = list(x.split(cnts, dim=0))
y = y.split(cnts, dim=0)

for x_i, y_i in zip(x, y):
    print(x_i.size(), y_i.size())

col_nm설정

scaler = StandardScaler()
scaler.fit(x[0].numpy()) # You must fit with train data only.

x[0] = torch.from_numpy(scaler.transform(x[0].numpy())).float()
x[1] = torch.from_numpy(scaler.transform(x[1].numpy())).float()
x[2] = torch.from_numpy(scaler.transform(x[2].numpy())).float()

df = pd.DataFrame(x[0].numpy(), columns=[' '])

노드 결정

model = nn.Sequential(
    nn.Linear(x[0].size(-1), 6),
    nn.LeakyReLU(),
    nn.Linear(6, 5),
    nn.LeakyReLU(),
    nn.Linear(5, 4),
    nn.LeakyReLU(),
    nn.Linear(4, 3),
    nn.LeakyReLU(),
    nn.Linear(3, y[0].size(-1)),
)

model

optimizer = optim.Adam(model.parameters())

n_epochs = 4000
batch_size = 256
print_interval = 100

#  early_stop = np.inf 설정 시, early_stop 조건 제거

from copy import deepcopy

lowest_loss = np.inf
best_model = None

early_stop = 100  #np.inf 설정 시, early_stop 조건 제거
lowest_epoch = np.inf

train_history, valid_history = [], []

for i in range(n_epochs):
    # Shuffle before mini-batch split.
    indices = torch.randperm(x[0].size(0))
    x_ = torch.index_select(x[0], dim=0, index=indices)
    y_ = torch.index_select(y[0], dim=0, index=indices)
    # |x_| = (total_size, input_dim)
    # |y_| = (total_size, output_dim)

    x_ = x_.split(batch_size, dim=0)
    y_ = y_.split(batch_size, dim=0)
    # |x_[i]| = (batch_size, input_dim)
    # |y_[i]| = (batch_size, output_dim)

    train_loss, valid_loss = 0, 0
    y_hat = []

    for x_i, y_i in zip(x_, y_):
        # |x_i| = |x_[i]|
        # |y_i| = |y_[i]|
        y_hat_i = model(x_i)
        loss = F.mse_loss(y_hat_i, y_i)

        optimizer.zero_grad()
        loss.backward()

        optimizer.step()
        train_loss += float(loss)

    train_loss = train_loss / len(x_)

    # You need to declare to PYTORCH to stop build the computation graph.
    with torch.no_grad():
        # You don't need to shuffle the validation set.
        # Only split is needed.
        x_ = x[1].split(batch_size, dim=0)
        y_ = y[1].split(batch_size, dim=0)

        valid_loss = 0

        for x_i, y_i in zip(x_, y_):
            y_hat_i = model(x_i)
            loss = F.mse_loss(y_hat_i, y_i)

            valid_loss += loss

            y_hat += [y_hat_i]

    valid_loss = valid_loss / len(x_)

    # Log each loss to plot after training is done.
    train_history += [train_loss]
    valid_history += [valid_loss]

    if (i + 1) % print_interval == 0:
        print('Epoch %d: train loss=%.4e  valid_loss=%.4e  lowest_loss=%.4e' % (
            i + 1,
            train_loss,
            valid_loss,
            lowest_loss,
        ))

    if valid_loss <= lowest_loss:
        lowest_loss = valid_loss
        lowest_epoch = i

        # 'state_dict()' returns model weights as key-value.
        # Take a deep copy, if the valid loss is lowest ever.
        best_model = deepcopy(model.state_dict())
    else:
        if early_stop > 0 and lowest_epoch + early_stop < i + 1:
            print("There is no improvement during last %d epochs." % early_stop)
            break

print("The best validation loss from epoch %d: %.4e" % (lowest_epoch + 1, lowest_loss))

# Load best epoch's model.
model.load_state_dict(best_model)

시각화

plot_from = 10

plt.figure(figsize=(20, 10))
plt.grid(True)
plt.title("Train / Valid Loss History")
plt.plot(
    range(plot_from, len(train_history)), train_history[plot_from:],
    range(plot_from, len(valid_history)), valid_history[plot_from:],
)
plt.yscale('log')
plt.show()

결과확인

test_loss = 0
y_hat = []

with torch.no_grad():
    x_ = x[2].split(batch_size, dim=0)
    y_ = y[2].split(batch_size, dim=0)

    for x_i, y_i in zip(x_, y_):
        y_hat_i = model(x_i)
        loss = F.mse_loss(y_hat_i, y_i)

        test_loss += loss # Gradient is already detached.

        y_hat += [y_hat_i]

test_loss = test_loss / len(x_)
y_hat = torch.cat(y_hat, dim=0)

sorted_history = sorted(zip(train_history, valid_history),
                        key=lambda x: x[1])

print("Train loss: %.4e" % sorted_history[0][0])
print("Valid loss: %.4e" % sorted_history[0][1])
print("Test loss: %.4e" % test_loss)

df = pd.DataFrame(torch.cat([y[2], y_hat], dim=1).detach().numpy(),
                  columns=["y", "y_hat"])

sns.pairplot(df, height=5)
plt.show()
